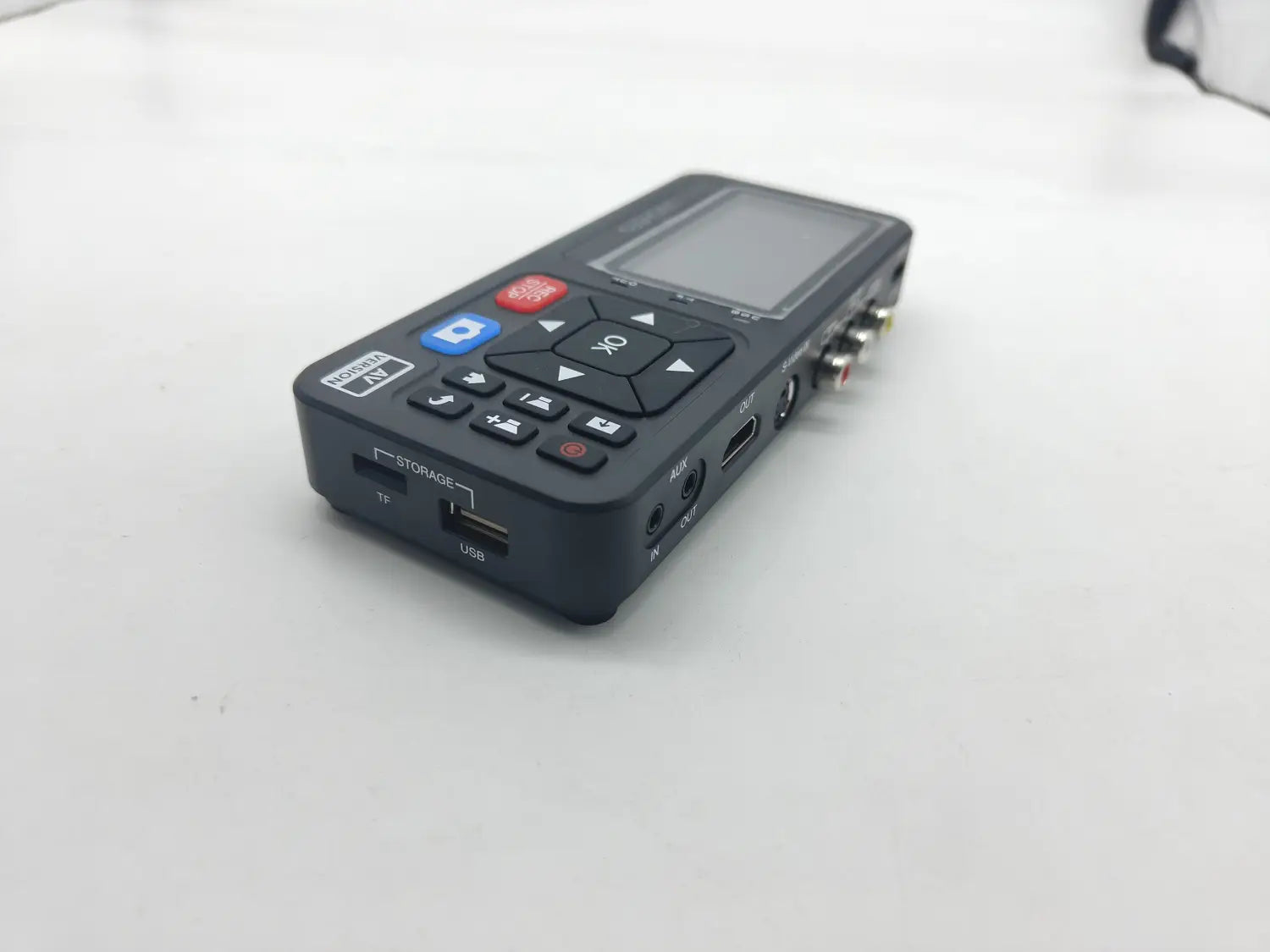

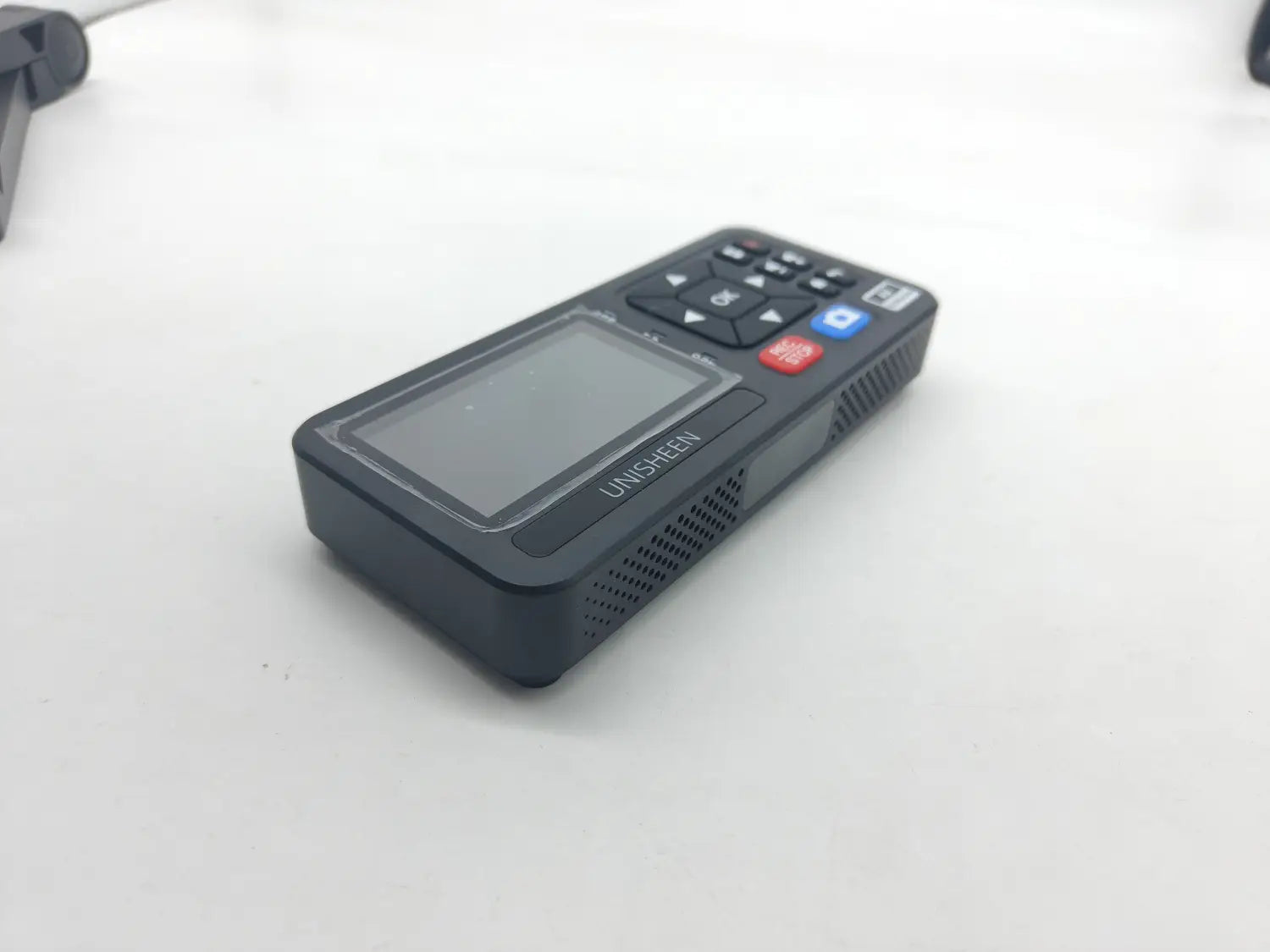

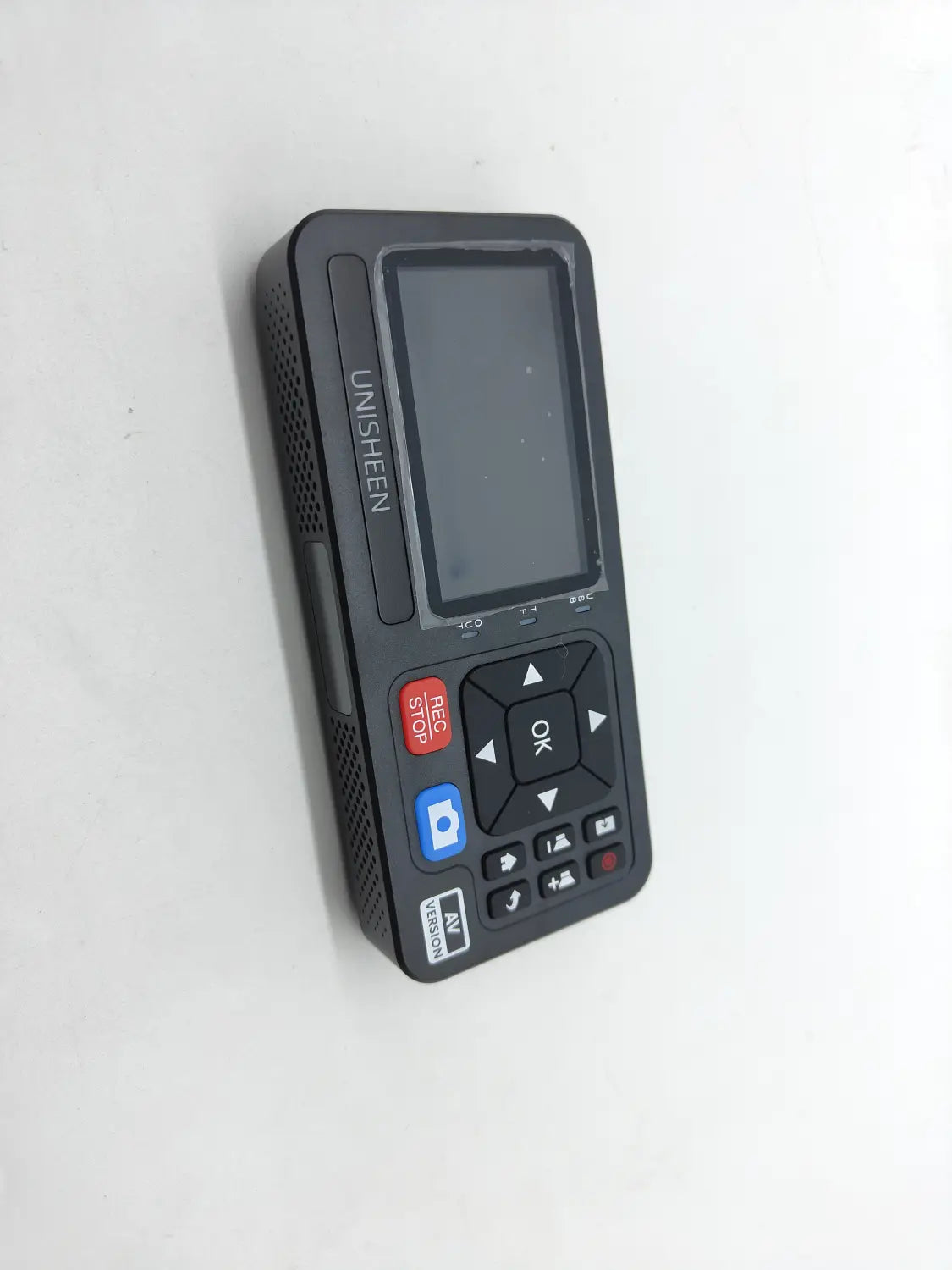

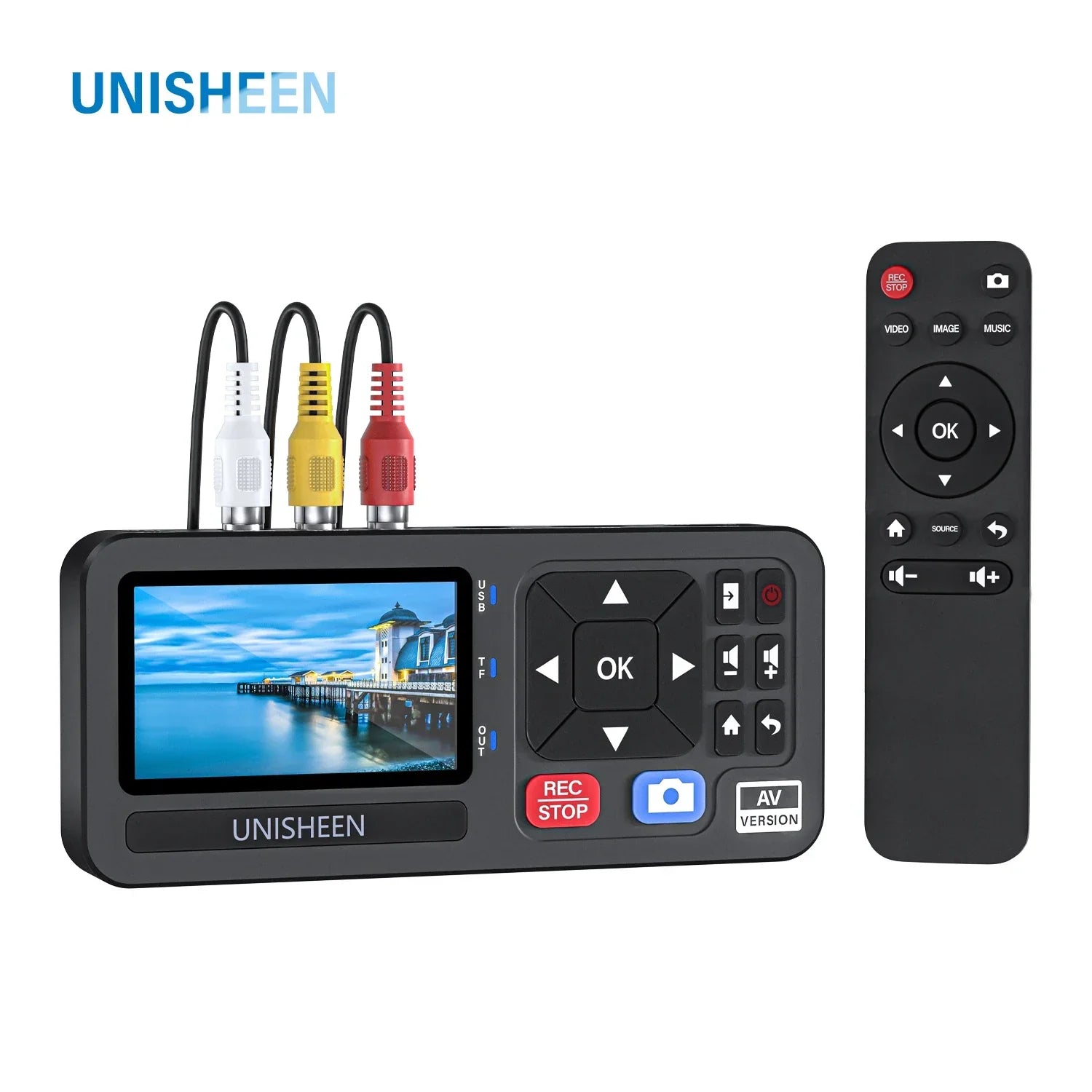

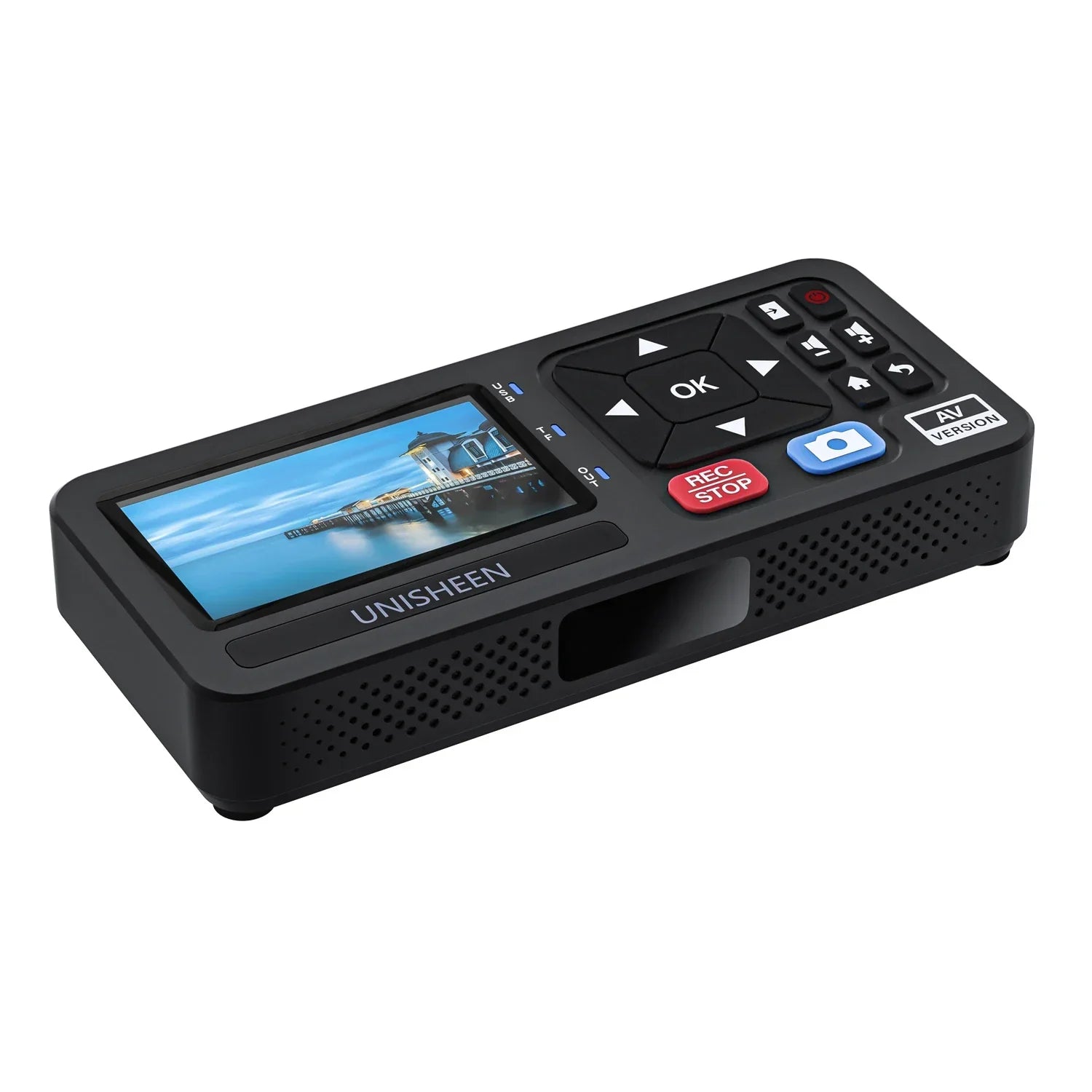

UNISHEEN UR230A Analog CVBS RCA SVideo Camera USB Tape VCR VHS Capture Card Box MP3 Video Recoder

UNISHEEN UR230A Analog CVBS RCA SVideo Camera USB Tape VCR VHS Capture Card Box MP3 Video Recoder

Regular price $159.99 USD
Regular price Sale price $159.99 USD
Sale Sold out
Shipping calculated at checkout.
Quantity
UNISHEEN UR230A Analog CVBS RCA SVideo Camera USB Tape VCR VHS Capture Card Box MP3 Video RecoderUNISHEEN UR230A Analog CVBS RCA SVideo Camera USB Tape VCR VHS Capture Card Box MP3 Video RecoderUNISHEEN UR230A Analog CVBS RCA SVideo Camera USB Tape VCR VHS Capture Card Box MP3 Video RecoderUNISHEEN UR230A Analog CVBS RCA SVideo Camera USB Tape VCR VHS Capture Card Box MP3 Video RecoderUNISHEEN UR230A Analog CVBS RCA SVideo Camera USB Tape VCR VHS Capture Card Box MP3 Video RecoderUNISHEEN UR230A Analog CVBS RCA SVideo Camera USB Tape VCR VHS Capture Card Box MP3 Video Recoder

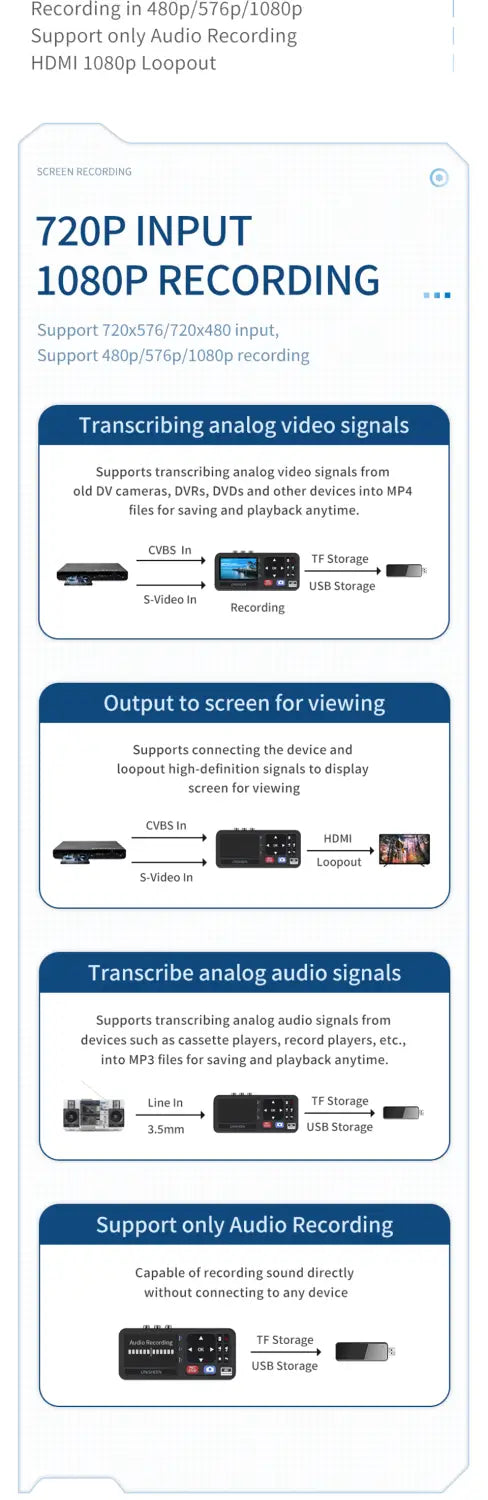

As a video recorder , it easily records audio and video from any devices which has CVBS / S-Video output ( RCA/AV output), such as a  VCR,VHS,Camcorder,RCA,DVD player...

It saves the videos onto the flash USB drives (up to 512 G ) or TF cards (up to 512 G) in MP4 format .The size of each file is 4G(FAT32) or 16G (NTFS/exFAT)
Q1,Which capture system is NTSC or Pal-M

A: UR230A supports NTSC and PAL .

Q2, Can this product runs on battery? or do i have to plug it in all the time?

The device is powered by a 5V 1A supply.it supports 7x 24 Hours to work.The battery-powered version will be available soon

Q3,which is what includes and you could bill me

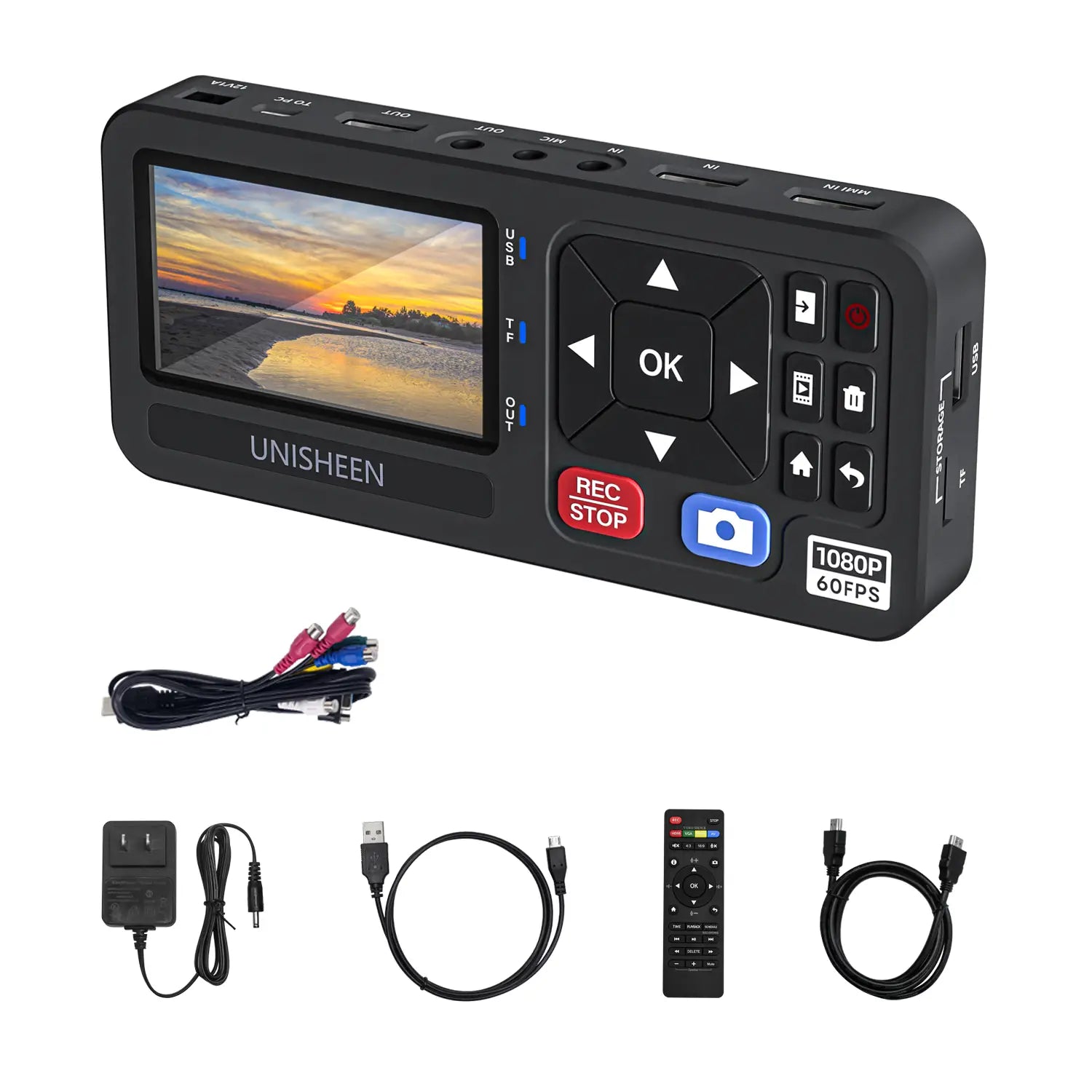

A: Included in Package:

UR230A: 1 piece
RCA Cable 1.2M: 1 piece
3.5mm Audio Cable 1.2M: 1 piece
USB Cable 0.8M: 1 piece
USB Power Adapter 5V1A: 1 piece
Remote Control: 1 piece
Manual: 1 piece


Q4, How many fps the device saves video

A: Select AUTO or 1080P recording
NTSC: Input is 480i60, record 480P30 or 1920x1080P30, and HDMI OUT outputs 1920x1080P60.
PAL: Input is 576i50, record 576P25 or 1920x1080P25, and HDMI OUT outputs 1920x1080P50

Q5,The final video files are 720 or 1080?

A: Select AUTO or 1080P recording
NTSC: Input is 480i60, record 480P30 or 1920x1080P30, and HDMI OUT outputs 1920x1080P60.
PAL: Input is 576i50, record 576P25 or 1920x1080P25, and HDMI OUT outputs 1920x1080P50

Q6,Is the voltage for power supply dual? Does its supports Singapore voltage.?

A: The device is powered by a 5V 1A supply.
The USB power supply is wide-voltage, supporting 100-240V.
We offer three types of power supplies: US, EU and UK standard. Please select the appropriate one when placing your order.

Q7,This device records video from VHS ???

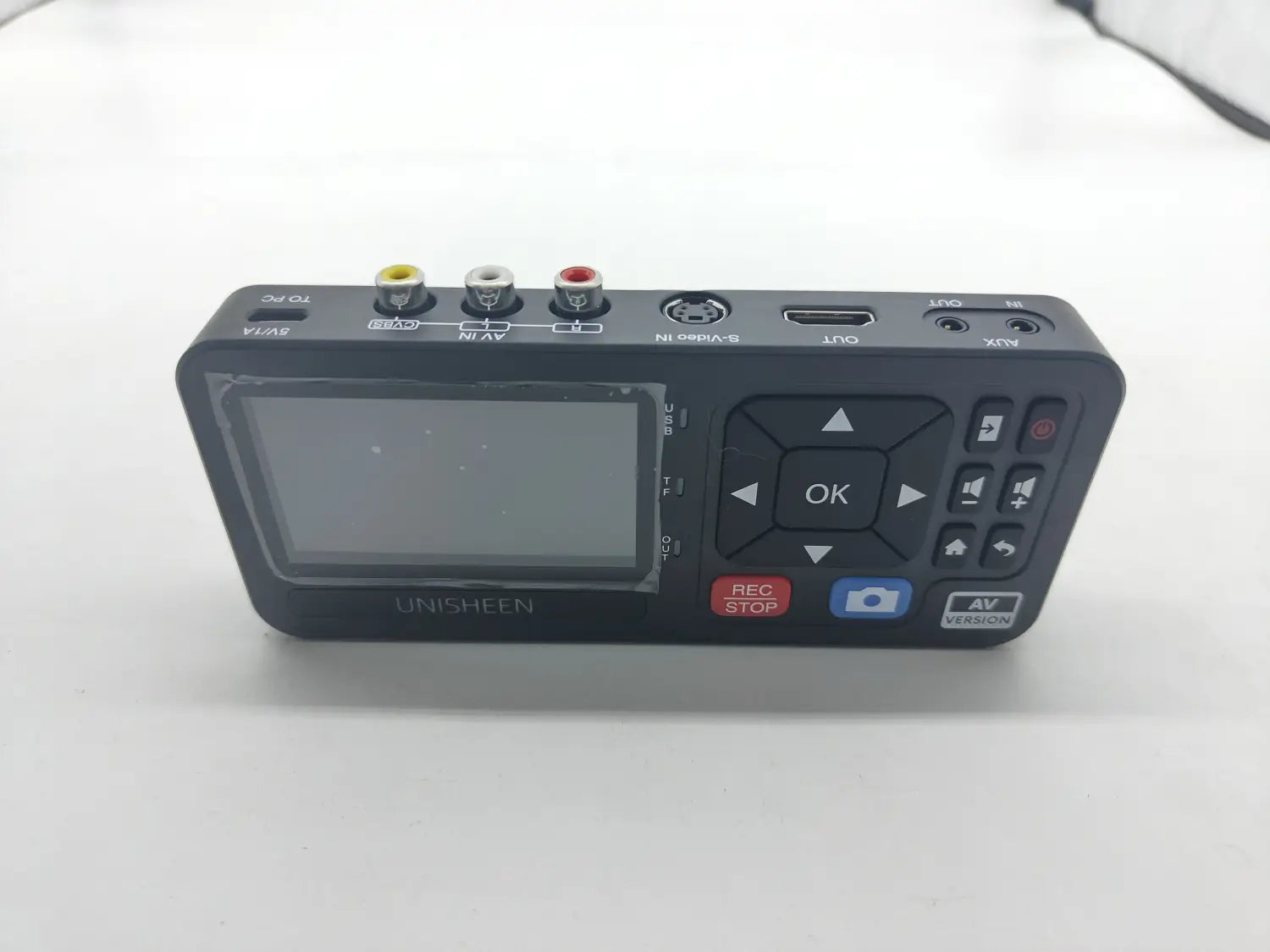

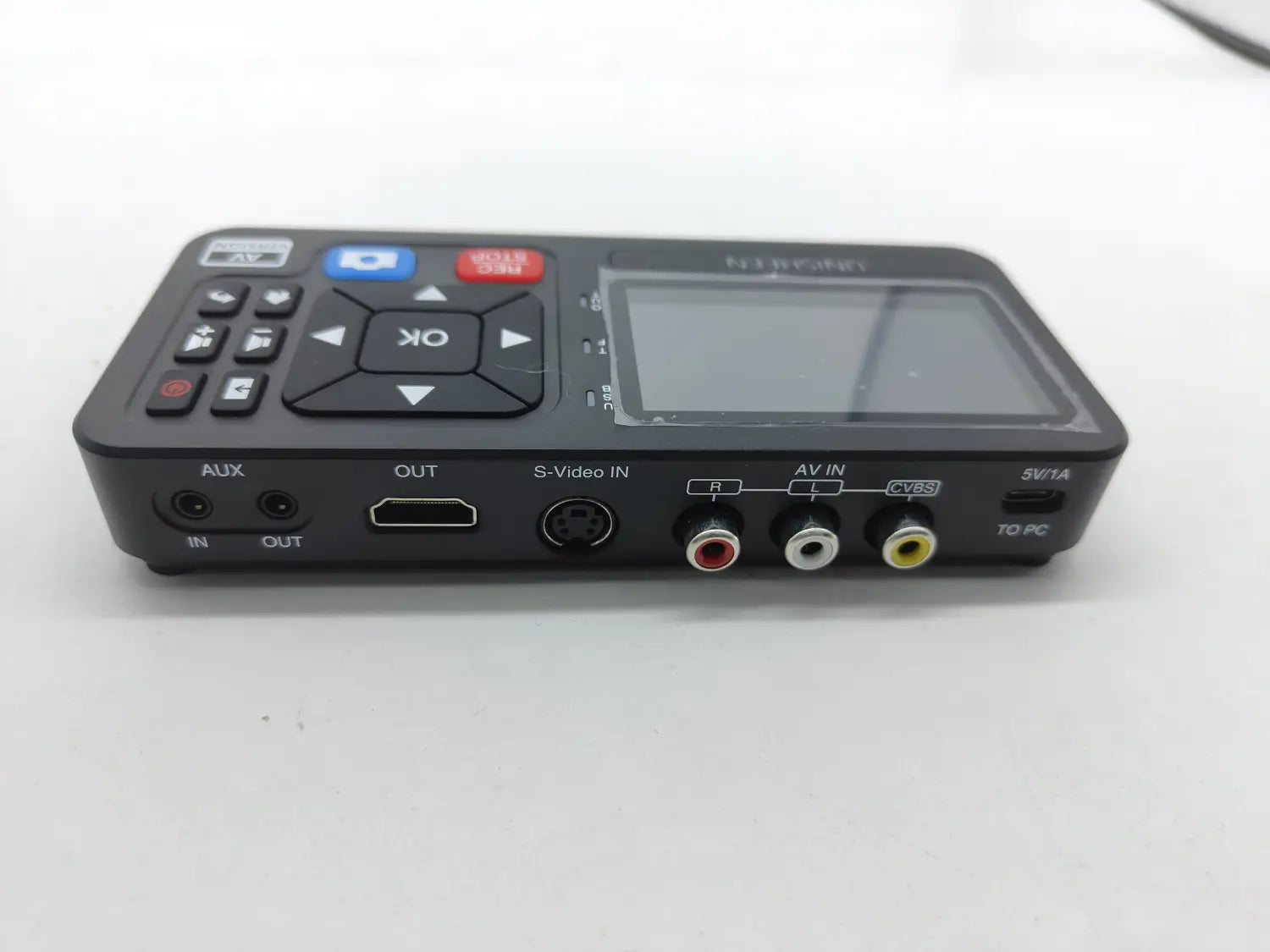

A: The UR230A features composite video and S-video interfaces, capable of capturing devices such as VHS、VCRs and cameras etc


UNISHEEN UR230A Analog CVBS RCA SVideo Camera USB Tape VCR VHS Capture Card Box MP3 Video RecoderUNISHEEN UR230A Analog CVBS RCA SVideo Camera USB Tape VCR VHS Capture Card Box MP3 Video RecoderUNISHEEN UR230A Analog CVBS RCA SVideo Camera USB Tape VCR VHS Capture Card Box MP3 Video RecoderUNISHEEN UR230A Analog CVBS RCA SVideo Camera USB Tape VCR VHS Capture Card Box MP3 Video RecoderUNISHEEN UR230A Analog CVBS RCA SVideo Camera USB Tape VCR VHS Capture Card Box MP3 Video RecoderUNISHEEN UR230A Analog CVBS RCA SVideo Camera USB Tape VCR VHS Capture Card Box MP3 Video Recoder


UNISHEEN UR230A Analog CVBS RCA SVideo Camera USB Tape VCR VHS Capture Card Box MP3 Video RecoderUNISHEEN UR230A Analog CVBS RCA SVideo Camera USB Tape VCR VHS Capture Card Box MP3 Video RecoderUNISHEEN UR230A Analog CVBS RCA SVideo Camera USB Tape VCR VHS Capture Card Box MP3 Video RecoderUNISHEEN UR230A Analog CVBS RCA SVideo Camera USB Tape VCR VHS Capture Card Box MP3 Video RecoderUNISHEEN UR230A Analog CVBS RCA SVideo Camera USB Tape VCR VHS Capture Card Box MP3 Video RecoderUNISHEEN UR230A Analog CVBS RCA SVideo Camera USB Tape VCR VHS Capture Card Box MP3 Video Recoder

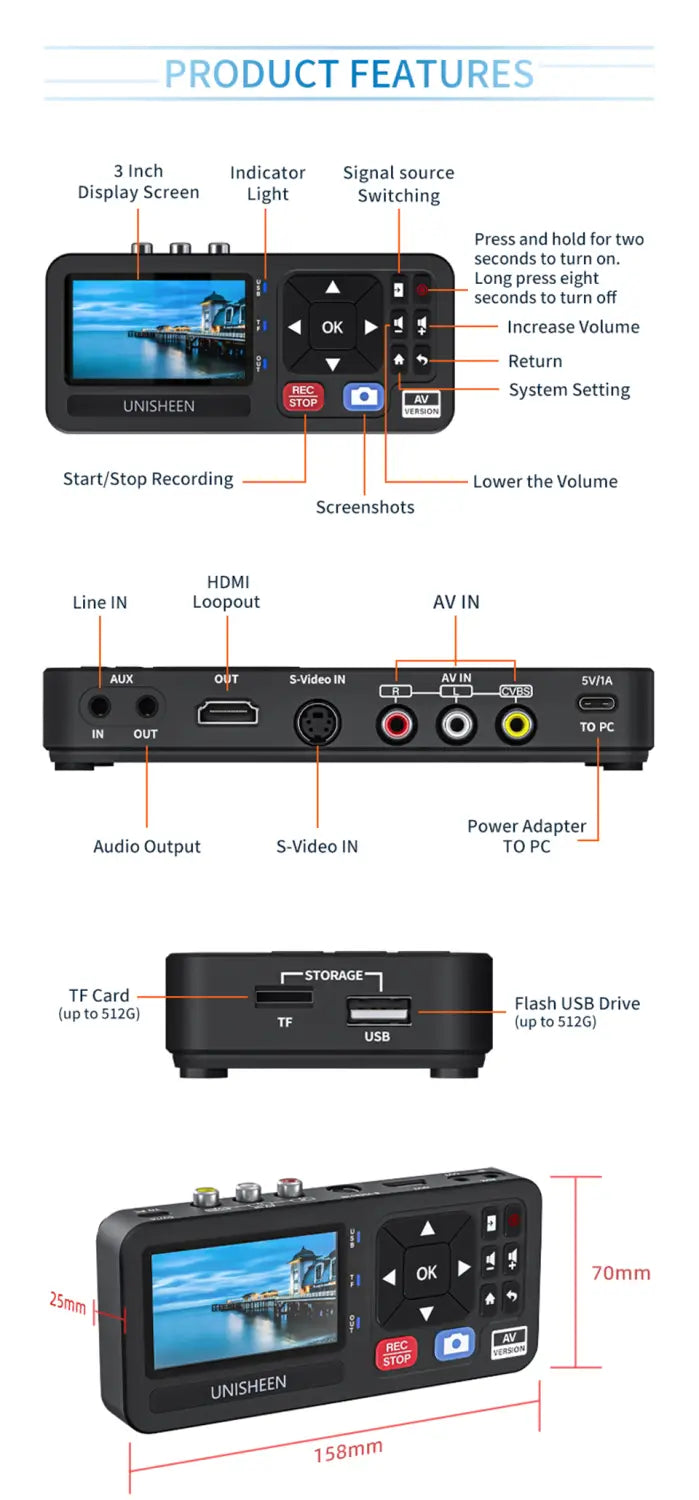

Feature

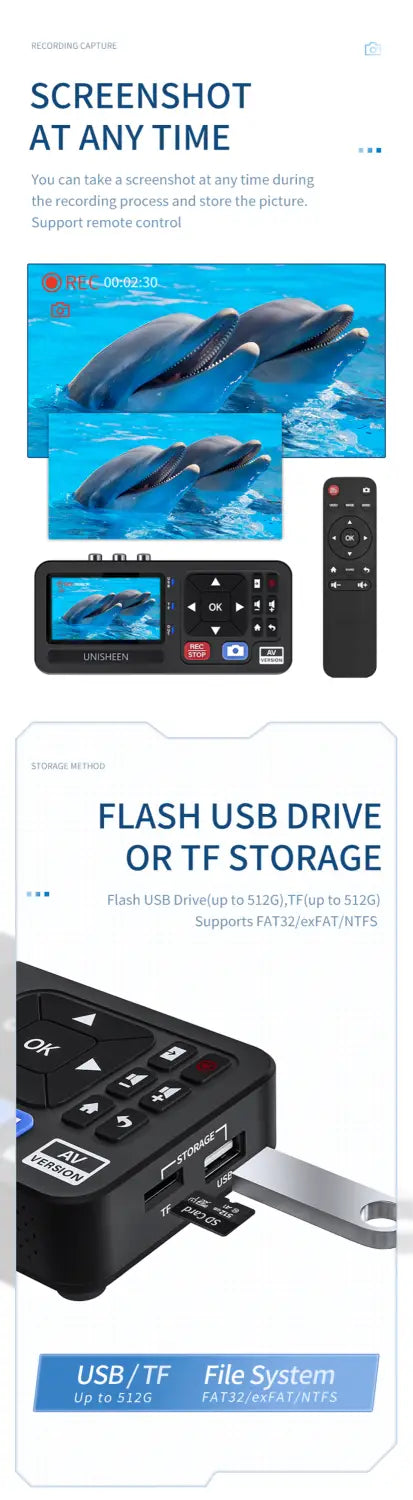

* CVBS/Svideo Input* HDMI 1080p Loopout* Recording in 480p/576/1080p* Support only Audio Recording* Support Snapshot in Recording* Schedule Recording* Flash USB Drive or TF Storage* Support Play Back* Remote Control

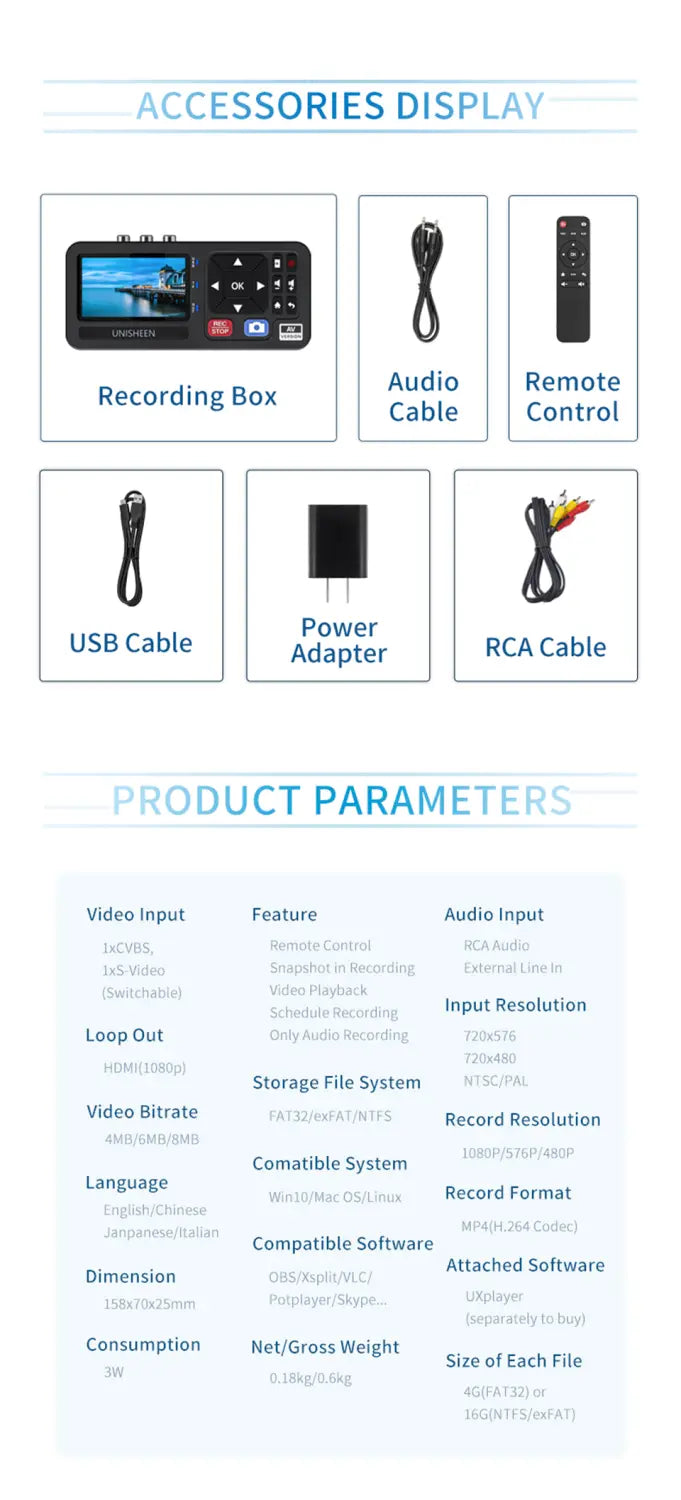

Specification

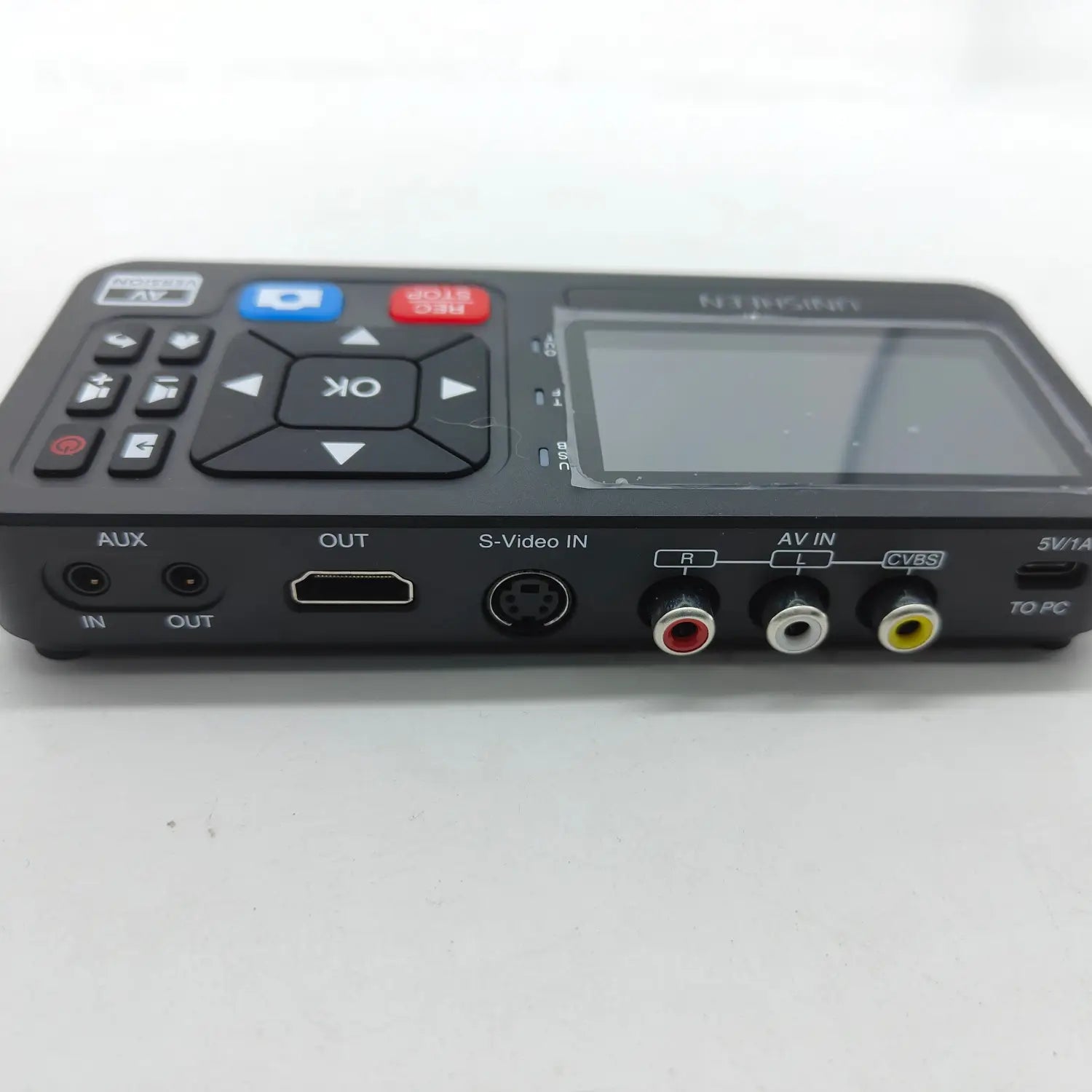

Video Input(Switchable)

1x CVBS/Svideo

Video Resolution

720x576/720x480 NTSC/PAL

Loop Out

1xHDMI(1080p)

Audio

RCA Audio/External Line In

Display Screen

3 Inch

Remote Control

Yes

Screeshot in Recording

Yes

Only Audio Recording

Yes

Playback

Yes

Alone Mode


Record Resolution

1080p/576p/480p

Storage Device

Flash USB Drive(up to 512G),TF(up to 512G)

Storage File System

FAT32/exFAT/NTFS

Record Format

MP4(H.264 Codec)

Video Bitrate

4/6/8MB

Audio Bitrate

128/196/320KB

Size of Each File

4G(FAT32) or 16G(NTFS/exFAT)

Schedule Recording

Support

Computer Mode


Record Resolution

1080p/576p/480p

Compatible UVC/UAC

Yes

Comatible System

Win10/Mac OS/Linux

Compatibility with 3rd application software

OBS/Xsplit/Wirecast/FLME/QuickTime/VLC/Potplayer/Skype

Attached Software

UXplayer(separately to buy)

General


Language

English/Japanese/Italian

Dimension(W×L×H)

158x70x25mm

Package(W×L×H)

186x145x78mm

Net/Gross Weight

0.18kg/0.6kg

Temperature

0-55(Work),-20-80(Storage)

Power/Consumption

5V DC 1.0A/3w

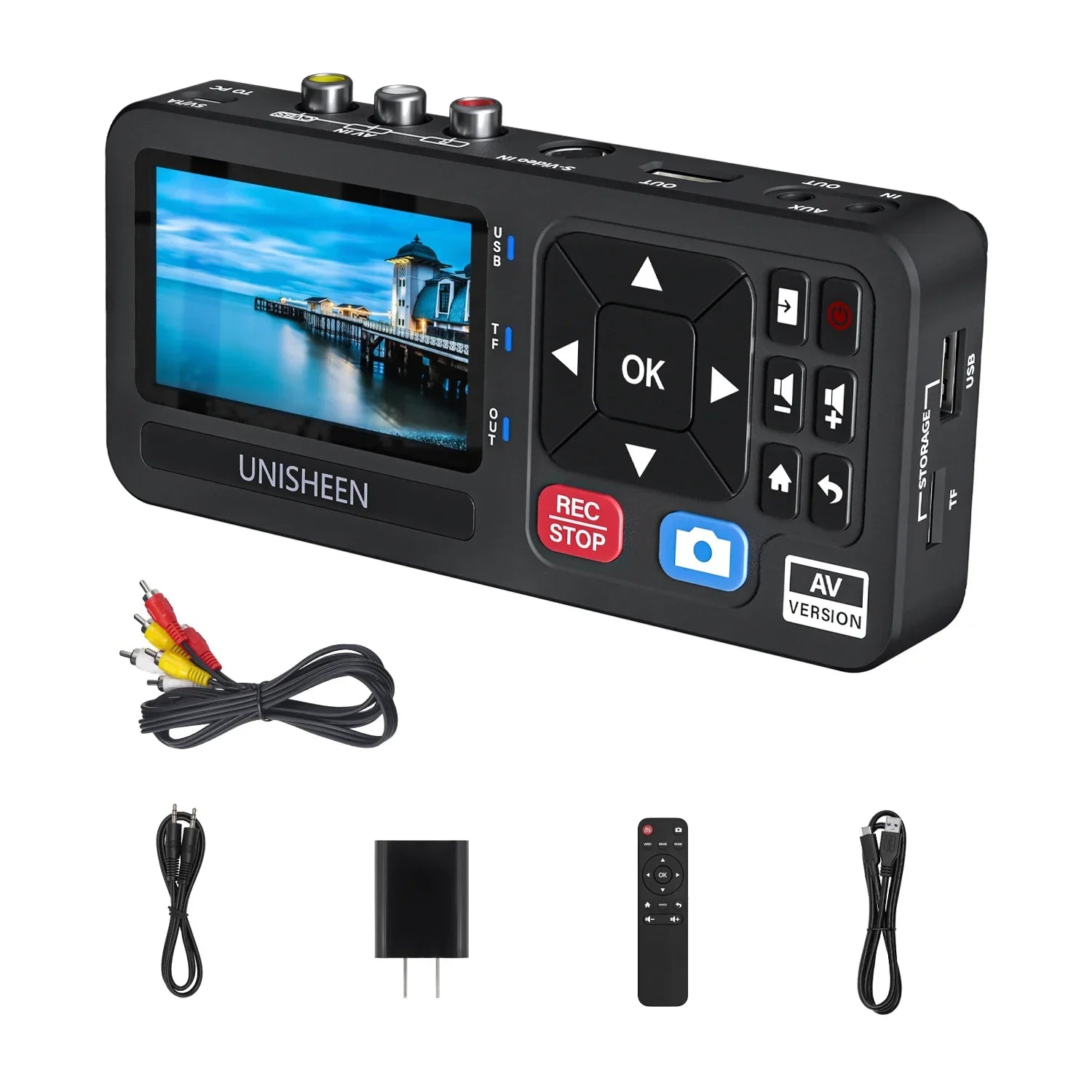

Included in Package


UR230A

1pcs

RCA Cable 1.2M

1pcs

3.5mm Audio Cable 1.2M

1pcs

USB Cable 0.8M

1pcs

USB Power Adapter 5V1A

1pcs

Remote Control

1pcs

Manual

1pcs
