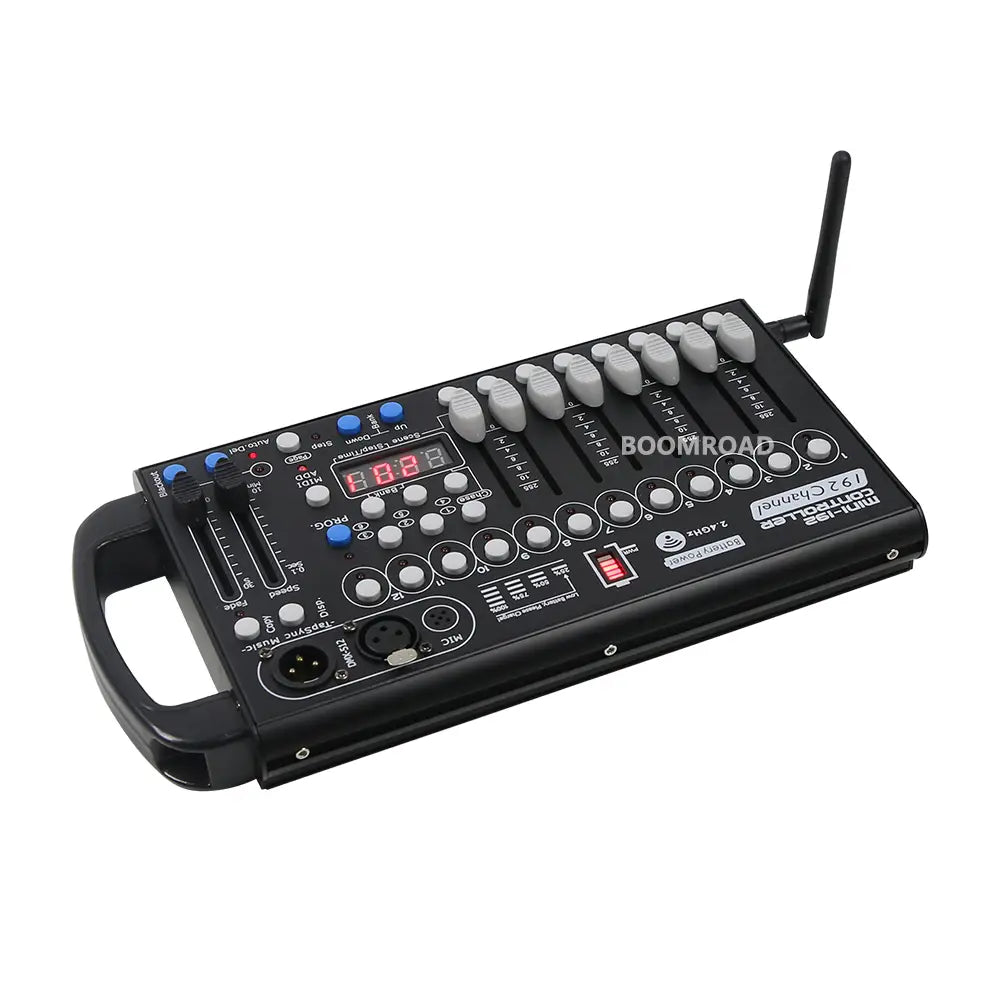

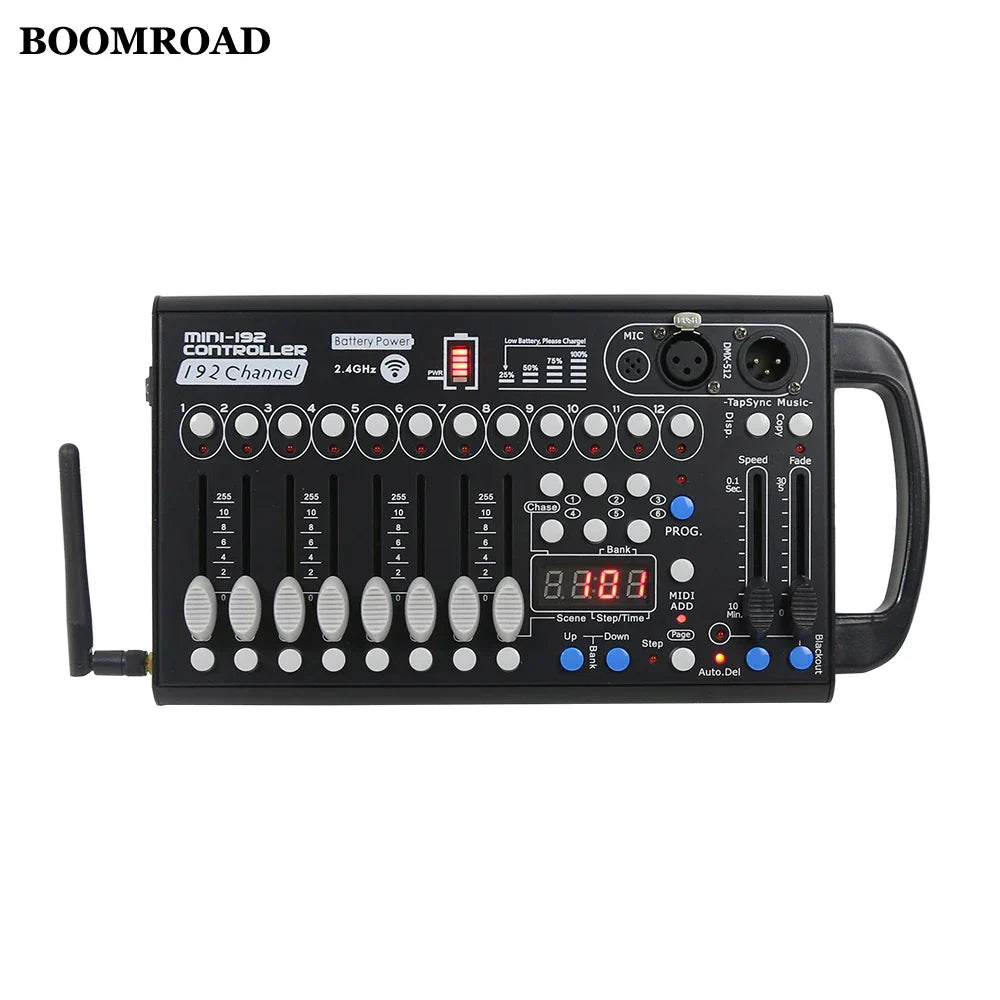

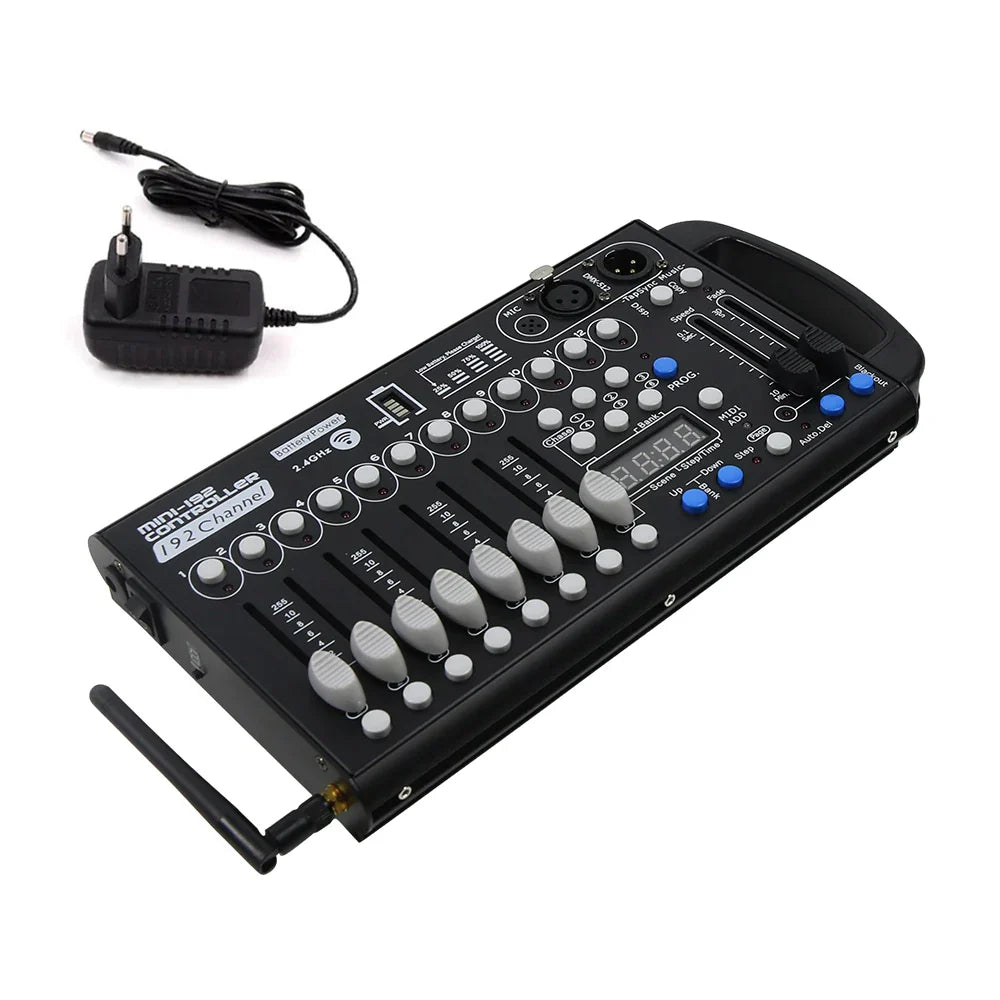

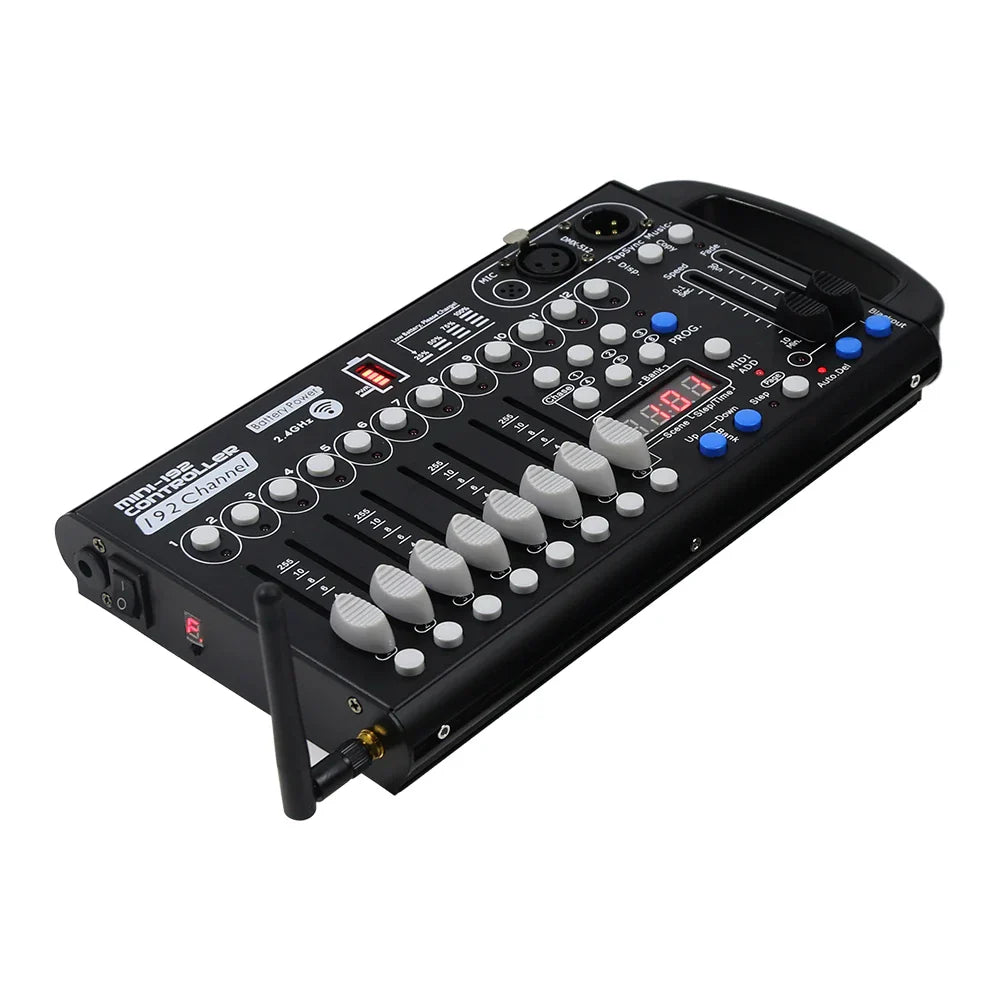

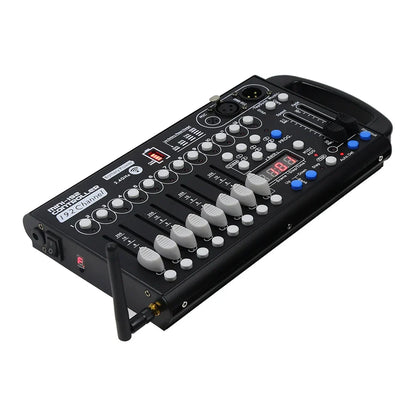

2.4G Wireless 192 Controller Battery Powered DJ Equipment DMX 512 Console For LED Par Moving Head Spotlights Music Light

Newest Wireless 192 DMX Controller Built in Battery DJ Equipment DMX 512 Console For LED Par Moving Head Spotlights DJ Lighting

Built-in Battery, Work about 72 hours.12 scanners control up to 16channels on each fixture. The scenes can be programmed into 6 chase sequences each holding up to 240 scenes which can be triggered by sound, manually by tap or automatically by the time faders between 0.1 seconds and 10 minutes. This controller is ideal for small theatres or stage applications.

Features:

1. 12fixtures each with 16 channels
2. 23banks each with 8 programmable scenes ( 184 scenes in total )
3. 8 channel slider with page up and page down.
4. 6 chase banks
5.Music, auto or manually triggered chase sequences.
6. Speed control from 0.1 second to 10 minutes.
7. MIDI connection facility ( MIDI IN ) to run the unit synchronous with your MIDI unit or compatible sofeware.
8. Blackout button.
9. DMX polarity switch at the rear.
10.19" rack mountable or can be used as a stand-alone unit.

Specification:

Built-in Battery, Work about 72 hours
Power Supply: AC90-240V
Number of channels: 192ch
Number of channels per page: 16ch

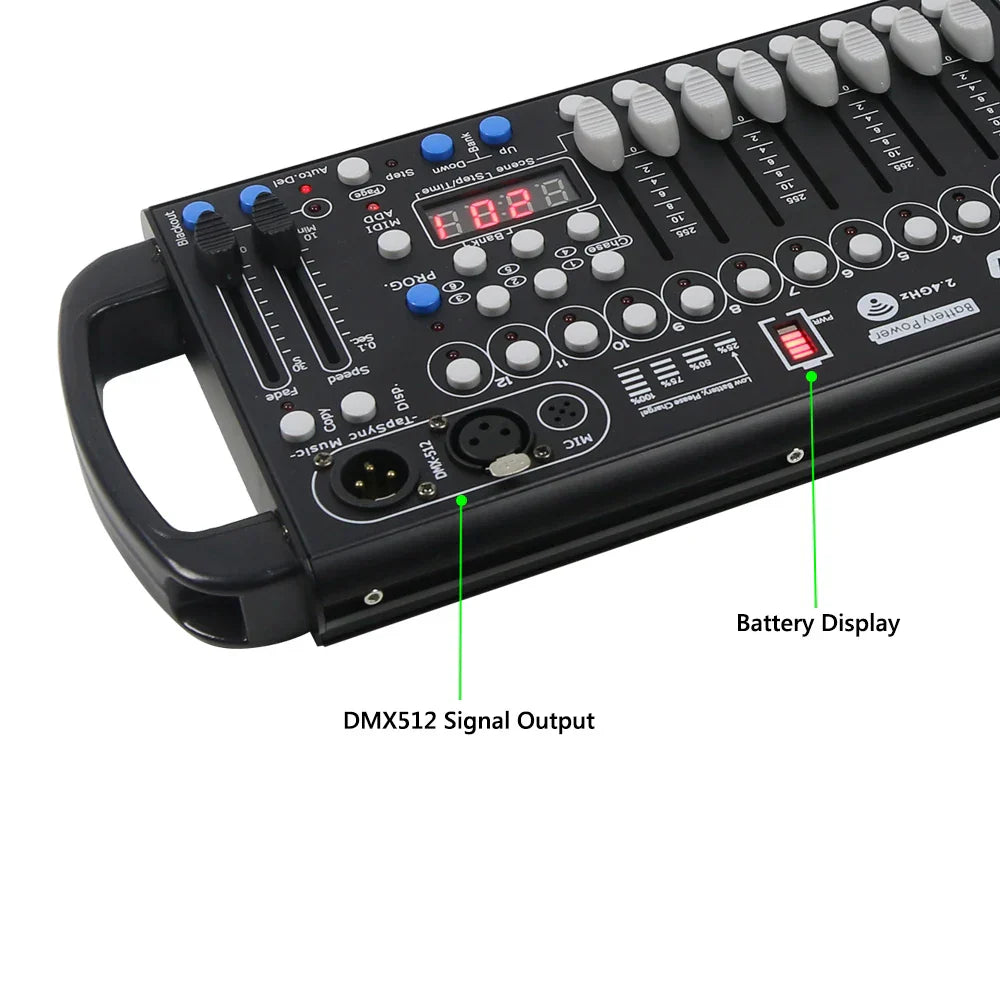

Standard control : DMX512
Operation temperature: -10 to 50 degree
Dimensions : 29x15x3cm
Weight : 1.5KG

Installation Operation:

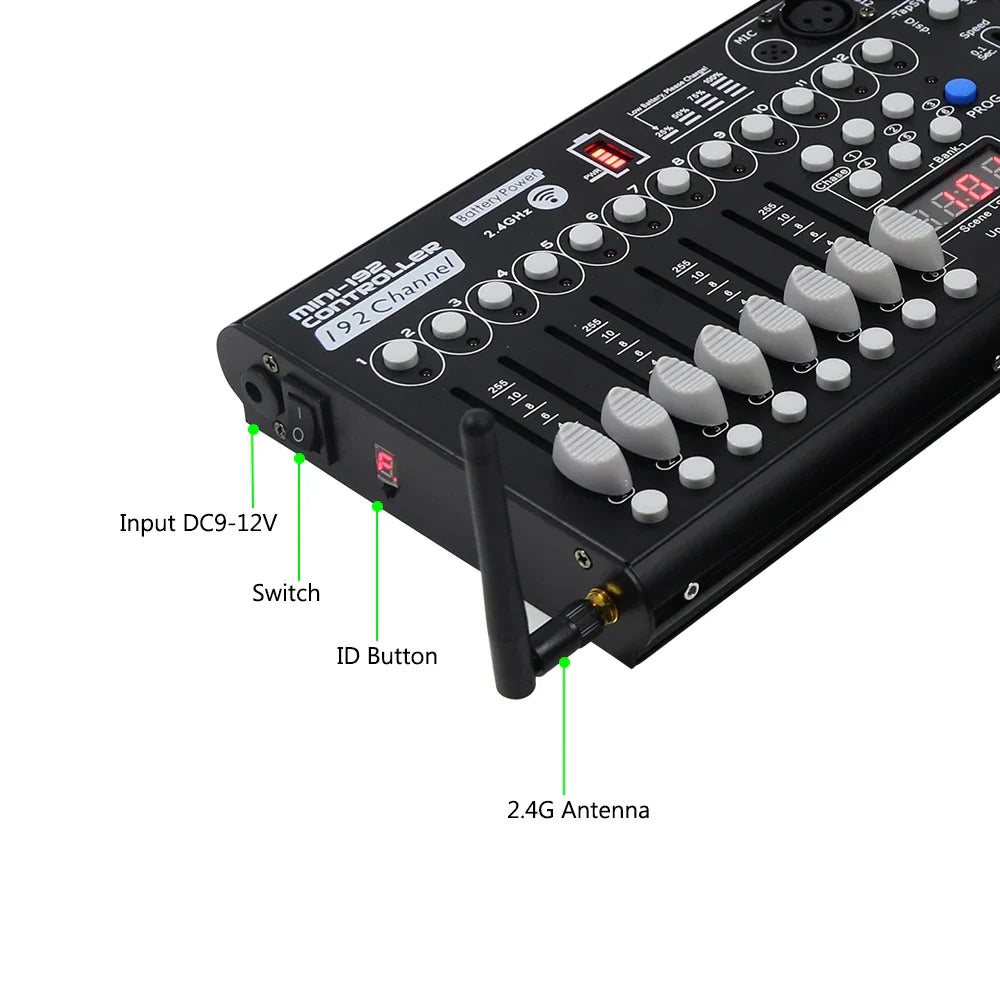

1.Switch on via the power button on the side panel of the controller.
2.The controller will make a self-test
3.The power indictor lights up.
4.The DMX indicator will flash.
5.In the initial statur, the controller set on PAGE 1(CH1-CH16) and the page indicator lights up in Red.
6.If you want to control channels 17-32 press the page button until the page indicator lights up in Blue.
7.The master faders control the total dmx output of all channels.
Value 0 means all DMX outputs are closed.
